BRAND NEPL

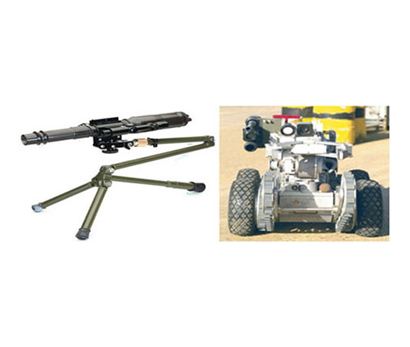

The De Armer Disrupter is a modular, totally recoilless de armer and disruptor. The tool can be configured either as a de armer for firing a range of solid projectiles or a disrupter for firing a range of fluid and frangible projectiles.The disruptor can be deployed either closeup to the target UXB,ED OR IED in the conventional way or, with a significant stand off from the target. The purpose of the standoff capability is to lower the threshold of danger to a bomb technician who is manually placing the DE Armer Disrupter, or a robotic vehicle carrying it.
When deployed with a standoff, the disruptor is used in conjunction with an elastomer projectile or a spin stabilized frangible projectile in the disruptor role, with a spin stabilized plain slug projectile in the De Armer role. The tool is powered by a range of electrically initiated 0.5 caliber power cartridges: super high gas, high velocity and medium velocity. the systems fires projectiles with a mass of upto 290g(10oz.)
The disruptor combines recoilless operation, with accuracy and ease of deployment. The totally balanced annular compensator system is akey feature eliminating recoil, enhancing accuracy and enabling the tool to be considerably lighter than conventional disruptors which requires heavy mass to reduce recoil. The feature of recoiless operations also makes the equipment user friendly and eliminates the danger of collaterial damage from recoil.these benefits mean that the systems can be fitted to small robots with a mass of only 25-30 kg.
Recoilless Stand Off De Armer Disrupter - Full Scale
- Comprising
- Brech module
- Compensator
- Breech plug assembly
- Capture gate
- Barrel short 1:bore
- Barrel 40mm
- Muzzle 40mm
- Barrel choketool loading compensator
- Tool loading projectile
- Afp loading adaptor
- Tool pounch, storing
- Rod universal
- Brush cleaning bronze wire
- Brush cleaning lambwool
- Brush cleaning breech conical
- Spanner universal
- Allen key set
- Breech contact cleaning probe
- Laser key
Telescopic slight (long eye relief and adjustable to x4) 2 x laser sight/zeroing aid. Lightweight multi position stand and mounting block (stand, mounting block and sight are all common with RE12-12 and RE 50-28 disruptors)
| Weight and dimensions | K.G. |
|---|---|
| Cannon on its own with muzzle complete but unloaded | 3.85 |
| Cannon on its own with choke complete but unloaded | 3.50 |
| Multi position stand on its own with mounting block | 4.60 |
| Cannon mounted on multi position stand with laser and telescopic sights | 9.00 |
| Cannon loaded and ready for implacement | 10 |
| Complete equipment in transit caseincluding stand, inert consumables for ten firings and 3 off each projectiles type (forks only 2) | 26.00 |
| Cannon overall length with choke fitted | 475mm |
| Cannon overall length with muzzle brake fitted | 540 |
| Overall diameter across compensator | 76 |
| Transit case dimensions | 620 x 490 x 215 mm high. |
