BRAND NEPL
NIKON ELECTRONICS PVT LTD. has developed an extensive range of Hook and Line Sets to ensure Explosive Ordnance Disposal (EOD) Operator able for safely, quickly and efficiently conduct semi-remote actions extended on operations.
Hook & Line is a semi remote technique used to move suspect devices or gain access into vehicles and buildings using a pulling line and specially design tools and advanced tools to carry out specialist functions. Hook and Line is used to move items of ordnance away from critical infrastructure, into a safe area, for demolition. It is very simple and uncomplicated.
The equipment with correct strength and design to allow the Operator as much control as possible during the "pull". The Essential Capability Hook and Line Kits contain hooks and attachments, pulleys, a reel of line and a storage system using various pulleys and karabiners, automatically opening snatch block can be used to ensure the object follows the line out, snag free.
Safe working distances can vary between 60–200 meters depending on the task but generally, the standard safe working distance from a briefcase sized object in a permissive environment is 100m.
For almost every scenario, NIKON ELECTRONICS PVT LTD can offer a range of Hook and Line sets to ensure that the task can be completed safely and effectively. It is very simple and uncomplicated to operate.

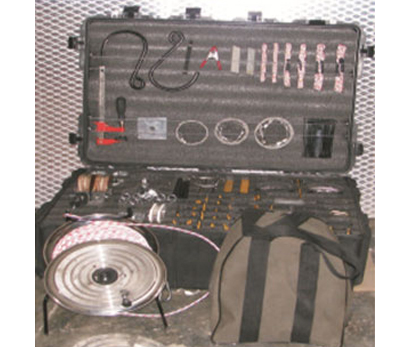

A hook and line set consists of various components along with 120 mts line to deal with improvised explosive devices encountered the device has all types of components attaching and changing the direction of the line to avoid obstacles. The component are made of non-magnetic materials.
| Details | Qty |
| Reel 300mm dia with handle and hold the line provided with kit | 02 |
| Line 5.5mm dia length 120m 750 kg. strength | 02 |
| Hook single plain 12mm | 02 |
| Hook single plain 25mm | 02 |
| Hook single plain 50mm | 02 |
| Hook double plain 25mm | 02 |
| Hook double plain 50mm | 02 |
| Hook single barbed 12mm | 02 |
| Hook single barbed 25mm | 02 |
| Hook single barbed 50mm | 02 |
| Hook double barbed 25mm | 02 |
| Hook double barbed 50mm | 02 |
| Rod extension 3m | 01 |
| Snatch block self opening | |
| Karabiner gate 15mm 2400kg | 02 |
| Karabiner gate 23mm 2700kg. | 02 |
| Piton 50mm | 04 |
| Piton 70mm | 04 |
| Piton 80mm | 04 |
| Self adhesive anchor | 10 |
| Suctionpad (dia 118mm) and double with pridgee piece (dia 118mm, 315mm and with stand a weight of atleast 50kg. |
Single-02, double-01 |
| Ring 25mm dia | 05 |
| Fish hook | 02 |
| Telescopic pole with self locking hook x 01at least 3m length | 01 |
| Vicejaw grip | 02 |
| Door stop(rubber) | 02 |
| Perspex collar X 06 | 04 |
| Rope sling 3mm dia, 2m strength 240kg. | 02 |
| Rope sling 4m dia, 2m strength 390kg | 02 |
| Rope sling 5mm dia, strength 550kg | 02 |
| Wedge with eye | 02 |
| Screw with eye | 10 |
| Tools compact set pocket knife | 01 |
| Tripod (capacity-750 kg)overall at least 2000mm anchor pegs for stability,min pitch circle dia of 2000mm AT max extension | |
| Heavy duty cantilver jaw grip | 02 |
| Seizers locking jaw, 35mm jaw length,175 mm | 02 |
| Wires sling 1.5mm dia 2m,172 kg strength | 02 |
| Wires sling 2mm 2m,340kg strength | 02 |
| Wires sling 3mm dia 2m,530kg strength | 02 |
| Doorwayanchor min 00-1100mm with eyes | 02 |
| D shackle at least 13mm gate and 1000kg load | 02 |
| Sledge | 01 |
| Sliding clamp anchor | 01 |
| Splitter ball | 02 |
| snatch block ,one way lock | 01 |
| Standard snatch block | 01 |
| Line branch | 01 |
| Retractable pocket search mirror (extendable to least 450mm) x 01 | 01 |
| Ground anchor 1000mm | 04 |
| Ground anchor 500mm | 02 |
| Ground anchor 300mm | 02 |
| Webbing sling 4m polyster | 02 |
| Round sling 2m polyster | 02 |
| Round sling 1m polyster | 02 |
| Snatch sling 1m polyster | 02 |
| Snatch block heavy duty with swivel | 04 |
| Hook 120mm opening fixed eye | 02 |
| Pelican transport case fitted with rubberized foam inserts(optional) | 01 |
Hook and line set 2
Capable of being launched by man portable launcher/crossbow,so as to achieve range upto 100mtrs.
Have pull setting for varius ranges on the launcher.
The launcher has an accuracy of 45 cms radius at the target end.
Various ropes can be made available
The hook /prong is light and sturdy sa as to sustain repeated blast.
Hooks/prong can be made available as per customer requirement.
The mini portable air launcher uses commonly available compressed air to fire a grapnel either from the shoulder or from the shoulder or from a solid point on the ground.it is generated for use by military and police special forces,as well as rescue service.
The mini air launcher fires a titanium grapnel ,together with 250m 3mm diameter pilot line with a breaking strain of 180kg. the horizon range is approximately 100 meters and the vertical range with double 3mm pilot line is approximately 35 meters.
Repeated firing can be made from the rechargeable cylinder withour it displaying any smoke heat or flash.
Features
- CO2 or air-no explosives
- Can be fired from and into flammable areas
- All projectiles are propelled to maximum speed before leaving the launching tube.
- All projectiles and lines are re-useable.
- Unlimited shelf-life with regular maintenance.
- Technical specifications:
- Weight launcher: 1kg.
- Grapnel: 0.6kg +line and any available air cylinder
- Overall length including grapnel: 70cm
- Materials: Anodized aluminium and stainless steel
- Average muzzle velocity : 30m/sec
- Accumulator pressure: 35 bars
