BRAND NEPL

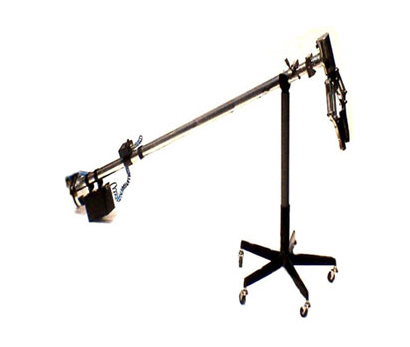

The new Telescopic Manipulator is an up-graded version with a longer reach and the ability to lift and move a larger suspect Improvised Explosive Device (IED).
The Telescopic Manipulator is manufactured from non-magnetic material and has been specifically designed to enable bomb disposal operators to handle explosive devices and dangerous materials from a relatively safe distance. It can be used in conjunction with the Explosive Disruption Shield to provide an even higher level of protection for the operator.
The new models is provided with additional manipulator "claw" for grabbing and lifting a different suspect article. The equipment is hand-operated to ensure maximum control and is supplied with a shoulder strap, together with an adjustable counterweight. It is designed to help the operator to lift an article weighing up to min 10kg.
- The equipment is around 15Kgs. It is usable with the help of an adjustable / lockable shoulder strap by a single bomb technician.
- The equipment offers a minimum safety distance of 04 meters. Total length Is 4.5 mts.
- The claws is adjustable (open, close, rotate) with a opening distance of at least 15 cm (06 inch).
- The manipulator is able to pick up a minimum weight of 10Kgs, when fully extended.
- The manipulator has facility of manual pitch adjustment.
- The battery pack power source lasts for minimum 60 min. of operation. The battery is rechargeable and battery charger with appropriate charging and full charge indicator is provided. Low battery indicator is provided.
- The telescope manipulator has break away tip arrangement, so that in case of a possible explosion only the tip will be damaged.
- The equipment is provided with various optional claws, which can be fitted and used as required depending on the shape of the object to be manipulated.
- The equipment has bipods.
- The equipment is fitted into a carrying case with neat slot in rubberized foam for placing parts.
